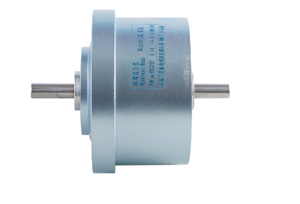

Introduction of Hysteresis Clutch and Its Profile Technical Parameters

　Hits：19167　AddTime：2021/9/20 22:49:14

Overview：

Hysteresis clutch is based on the hysteresis principle,and uses hysteresis to transmit torque. The excitation current and the transmitted torque are basically linear. In the case of no slip speed, it can transmit a certain torque, and has the advantages of fast response,simple structure, no pollution ,no noise,no impact vibration, and energy conservation. It is a multi-purpose,superior performance automatic control component. It can be widely used in the field,of tension control for buffer starting,overload protection,speed regulation,and winding in winding systems.

Specification

Model	Rated torque	Rated current	Voltage	Coil resistance (at 25�！�10%)	Rated slip power		Max speed
	Rated torque	Rated current	Voltage	Coil resistance (at 25�！�10%)	5min	Continuous
	N.m	mA	VDC	O(Ohm)	watts	watts
HL-0.03	0.03	210	24	115	45	10	3600
HL-0.1	0.1	300	24	75	70	20	3600
HL-0.3	0.3	480	24	50	120	38	3600
HL-0.5	0.5	480	24	50	120	38	3600
HL-1	1	342	24	70	300	70	3600
HL-2	2	530	24	45	460	115	3600
HL-3	3	750	24	32	800	165	3000
HL-5	5	750	24	32	1000	200	3000
HL-6	6	1200	24	20	1000	200	3000
HL-10	10	1200	24	20	1200	350	3000
HL-12	12	1200	24	20	1200	350	3000
HL-15	15	1200	24	20	1200	350	3000

Remarks:The products above are self cooling hysteresis clutches of our company If you need other specifications,we can provide customized service and technology support.

Model	φA	φB(h6)	φC	φD	E	F	G	H	O	K	φJ(rèn)(h6)	φN	M	S	I
HL-0.1A	63	6	19	67	87.1	54	15	15	2	1.1	10	40	3-M4↓6	9.5	5.6
HL-1A	98	10	32	102	137	77.8	30	24.2	4	1.1	15	50	3-M5↓10	14.2	9.4
HL-2A	127	12	42	133	121	94	27	27	6	1	20	60	3-M5↓12	19	11.5

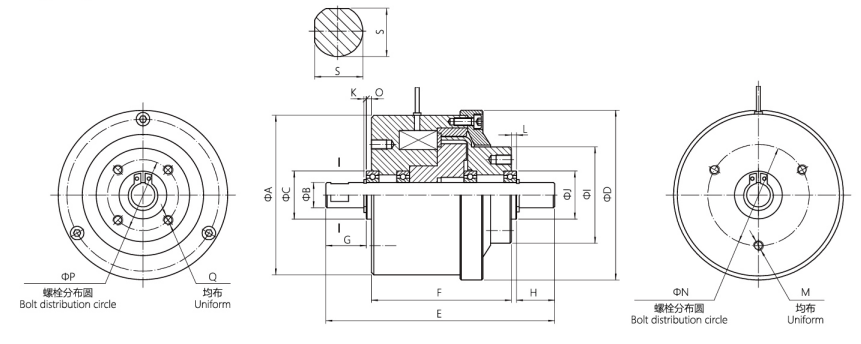

HL-B Type hysteresis clutch Dimension

Model	φA	φB (h6)	φC	φD	E	F	G	H	φI	K	L	M	φN	O	P	Q	S
HL-0.1B	63	10	19	67	90.3	54.2	15	15	37	1.1	2	4-M4↓6	40	2	28	4-M4↓6	9.5
HL-1B	98	15	32	102	160.5	75.5	30	46	58	1.1	3	4-M5↓10	50	4	50	4-M5↓6	14.2

HL-C Type hysteresis clutch Dimension

Model	φA	φB(h6)	φC (h6)	φD	E	F	G	H	I	φJ(rèn)(h6)	K	L	M	φN	O	P	Q	R	S
HL-0.03C	42	6	12	45	60.5	32	27.2	12	2.7	8	0.5	13	3-M3↓5	26	1.5	5	6	1.5	7.5
HL-0.3C	69	8	28	-	97.5	43.6	37.6	25	7.5	15	1	25.3	3-M4↓6	50	1	12	8	2.5	14.5
HL-0.5C	69	8	28	-	97.5	43.6	37.6	25	7.5	15	1	25.3	3-M4↓6	50	1	12	8	2.5	14.5

HL-K Type hysteresis clutch dimension

Model	φA(H7)	b×h	φB	φC(h7)	φD	φE(H7)	φF	G	H	I	J	K	φL	M	φN	O
HL-0.3K	12	-	32K7	62	82	50	80	40	60	3	10	5.2	60	4-M4↓6	42	3-M4↓10
	12	4×13.8
	15	5×17.3
HL-1K	20	6×22.8	42K7	91	110	80	107	38	59	3	15	10.7	90	4-M5↓6	50	4-M5↓15
	25	8×28.3
	30	8×33.3
HL-3K	20	6×22.8	52K7	116	148	100	140	50	79	3	16.5	12	116	4-M6↓10	80	4-M5↓16.5
	30	8×33.3
	40	12×43.3
HL-5K	30	8×33.3	52K7	110	163	105	155	58	96	3	23	13	120	4-M6↓10	90	4-M6↓17.5
	40	12×43.3
	50	14×53.8
HL-6K	30	8×33.3	52K7	110	163	105	155	58	96	3	23	13	120	4-M6↓10	90	4-M6↓17.5
	40	12×43.3
	50	14×53.8
HL-10K	30	8×33.3	90H7	174	225	150	205	80	118	4	10	-	174	4-M8↓12	105	4-M8↓10
	40	12×43.3
	50	14×53.3
HL-12K	30	8×33.3	90H7	174	225	150	205	80	118	4	10	-	174	4-M8↓12	105	4-M8↓10
	40	12×43.3
	50	14×53.3
HL-15K	30	8×33.3	90H7	174	225	150	205	80	118	4	10	-	174	4-M8↓12	105	4-M8↓10
	40	12×43.3
	50	14×53.3
